+gf+ signet 3-8150-1BATTERY powered flow totalizer

Purchasing multiple quantities? Ask us about price breaks!

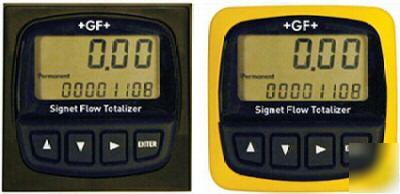

+GF+ SIGNET 3-8150-1Battery Powered Flow Totalizer
8150 Battery Powered Flow Totalizer
Field mount for pipe, wall, or tank mounting.
• Long-lasting lithium batteries
• Large digital display with averaging
• Simple push-button operation
• User selectable access code prevents unwanted changes
• Wastewater Flow Accumulation
• Remote or Mobile Treatment/Distribution Systems
+GF+ SIGNET 515, 525 and 2517 flow sensors
4-digit upper line - flow rate
8-digit lower line - volume totalizer count, either resettable or permanent
Low battery indication: Battery symbol appears on LCD display
8-digit resettable totalizers: Stored until user resets; continues to be stored even after batteries are removed
8-digit permanent: Kept permanently, even when batteries are removed
Keypad material: Sealed 4-key silicon rubber
Window: Polyurethane coated polycarbonate
Battery: Two 3.6V Lithium thionyl chloride, AA-size
Battery life: 4 years nominal @ 50°C (122°F)
Enclosure rating: NEMA 4X/IP65 front
Operating Temperature: -10°C to 65°C (14°F to 149°F)
Storage Temperature: -40°C to 100°C (-40°F to 212°F)
Relative Humidity 0 to 95% Non-condensing
• Manufactured under ISO 9001:2000 for Quality and ISO 14001:1996 for Environmental Management
1) For panel version, cutout must be 92 x 92 mm (3.62 x 3.62 in.)
2) To mount the panel version on a wall, use the heavy duty wall mount bracket.
3) Use the Universal mounting kit with the Field mount instrument to mount to a pipe, tank or wall.
4) An optional splash proof rear cover can be ordered separately if needed
